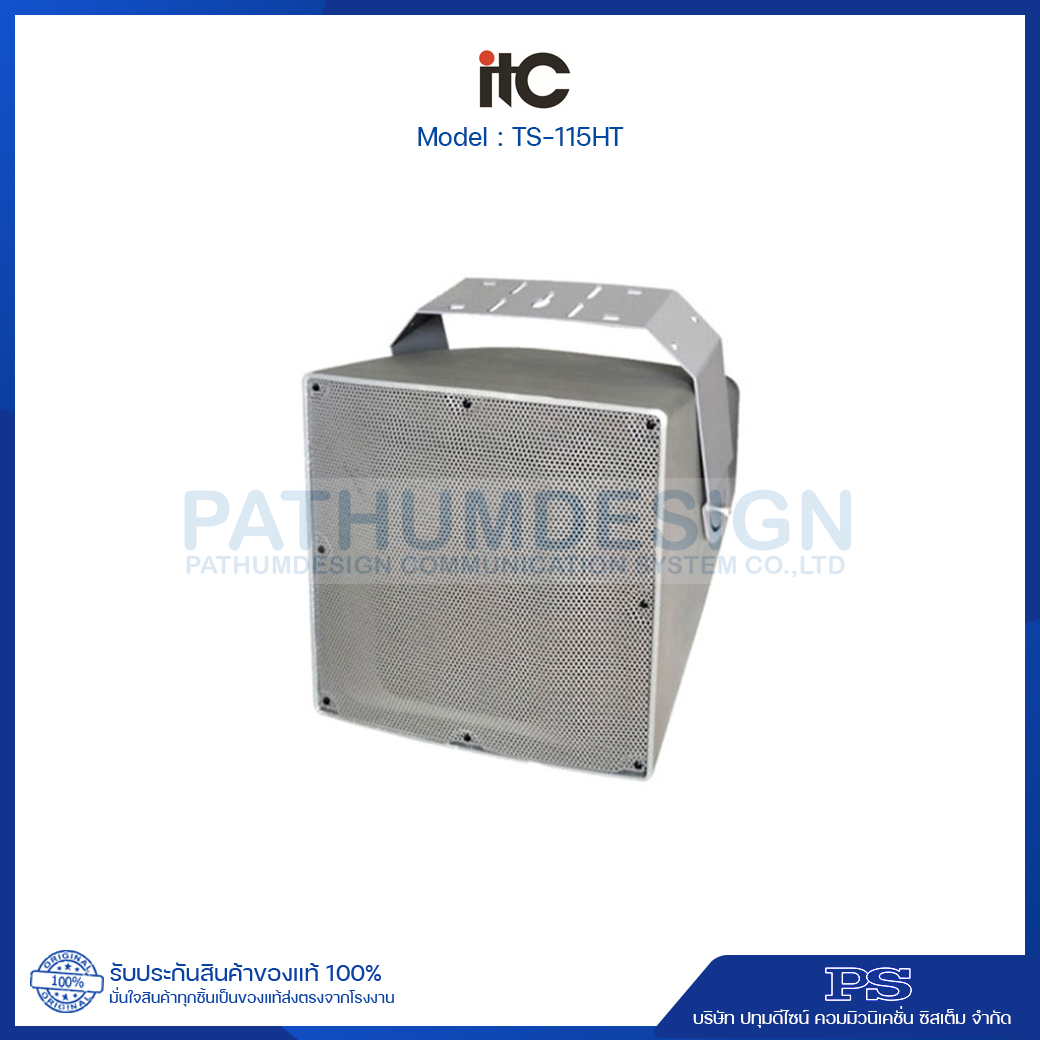

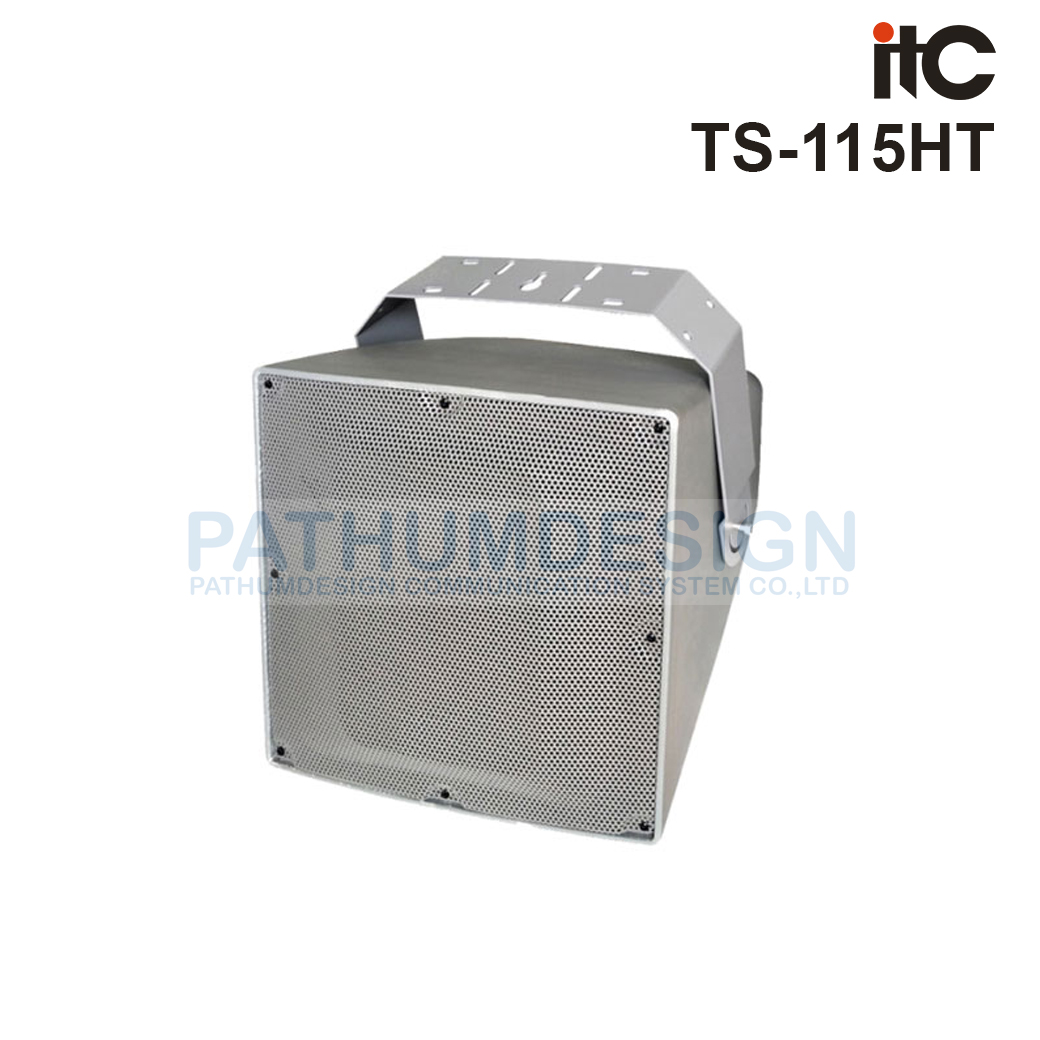

ITC TS-115HT 300W, (100V) Outdoor Two way Loudspeaker
ตู้ลำโพง 15 นิ้ว 300 วัตต์ ภายนอก
Feature:
* Engineering plastic injection molding housing, good weather resistance, high strength, and light weight.
* The coaxial structure design of an efficient 15-inch mid-woofer and a 44-core compressed driver.
* High sensitivity, high power, long transmission distance.
* Steel surface mesh, built-in three layers of mesh cloth and acoustic cotton with breathable and waterproof functions, in accord with IP56 International standard.
* Equipped with a standard hanger with galvanized steel spraying treatment and matching stainless steel screws and safety ropes, which are convenient and safe to install.
* It is mainly used in school playgrounds, theme parks, cultural squares, stadiums, etc.
Specification:
|
Model |
TS-108HT |
TS-112HT |
TS-115HT |
|
Frequency response |
75Hz ~ 18KHZ @ - 10 db |
55Hz ~ 18KHZ @ -10dB |
50Hz～18KHz@-10d |
|
Rated power |
37.5W, 75W, 150W/100V, 150W/8Ω optional |
50W、100W、200W/100V,300W/8Ω optional |
75W, 150W, 300W/100V, 400W/8Ω optional |
|
Peak power |
600W |
1200W |
1200W |
|
Max SPL(rated/peak) |
117dB/124dB |
123dB/129dB |
127dB/134dB |
|
Sensitivity |
96db±3db @ (1w/1m) |
98dB±3dB@ (1W/1m) |
103dB±3dB@(1W/1m) |
|
Coverage angle |
(H) 90° (V) 90° |
(H) 90° (V)90° |
(H)90°(V)90° |
|
Tweeter |
8" woofer ×1, 1.4" compressed tweeter ×1 |
12" woofer ×1, 1.7" compressed tweeter ×1 |
15" woofer ×1, 1.7" compressed tweeter ×1 |
|
Size |
300×302×280mm |
407×410×378mm |
500×500×520mm |
|
Weight |
11Kg |
20Kg |
27Kg |
