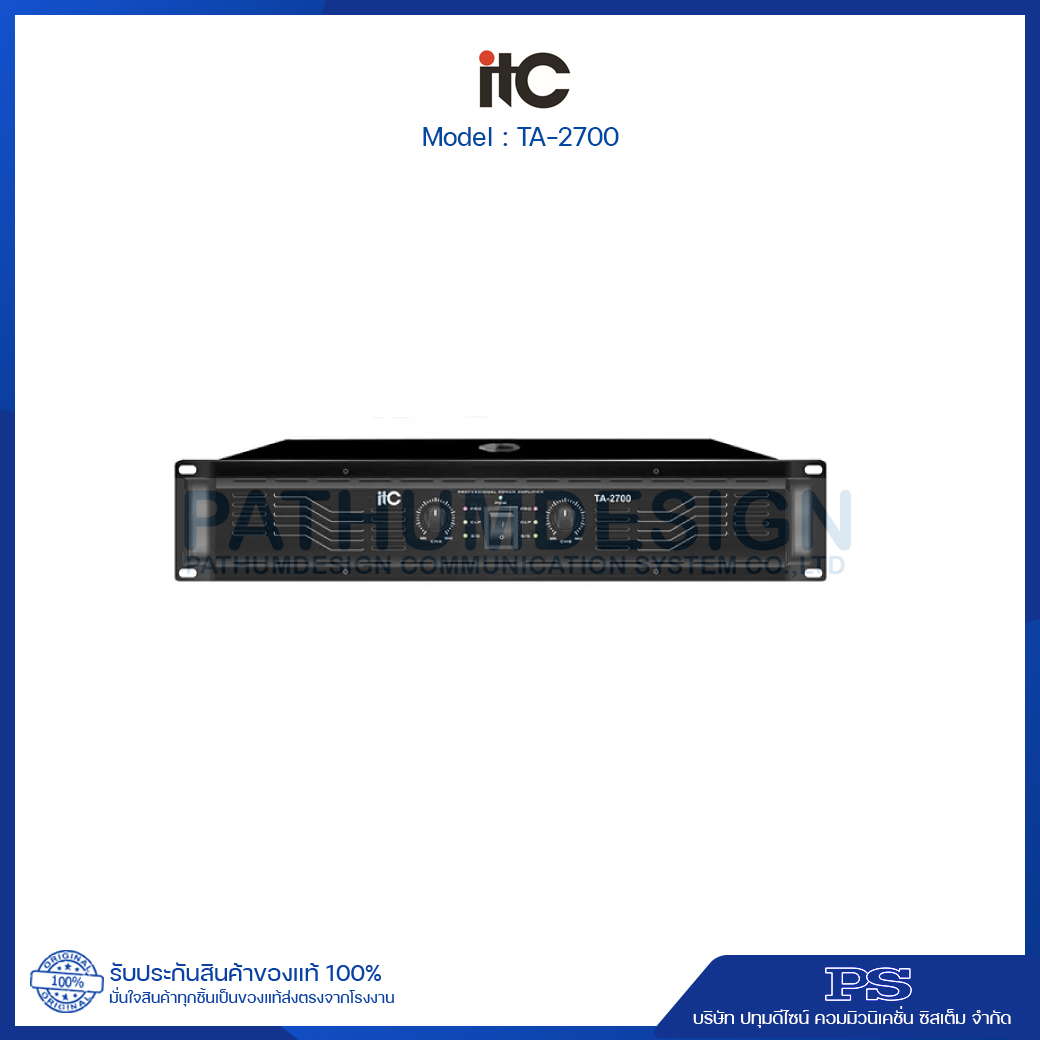

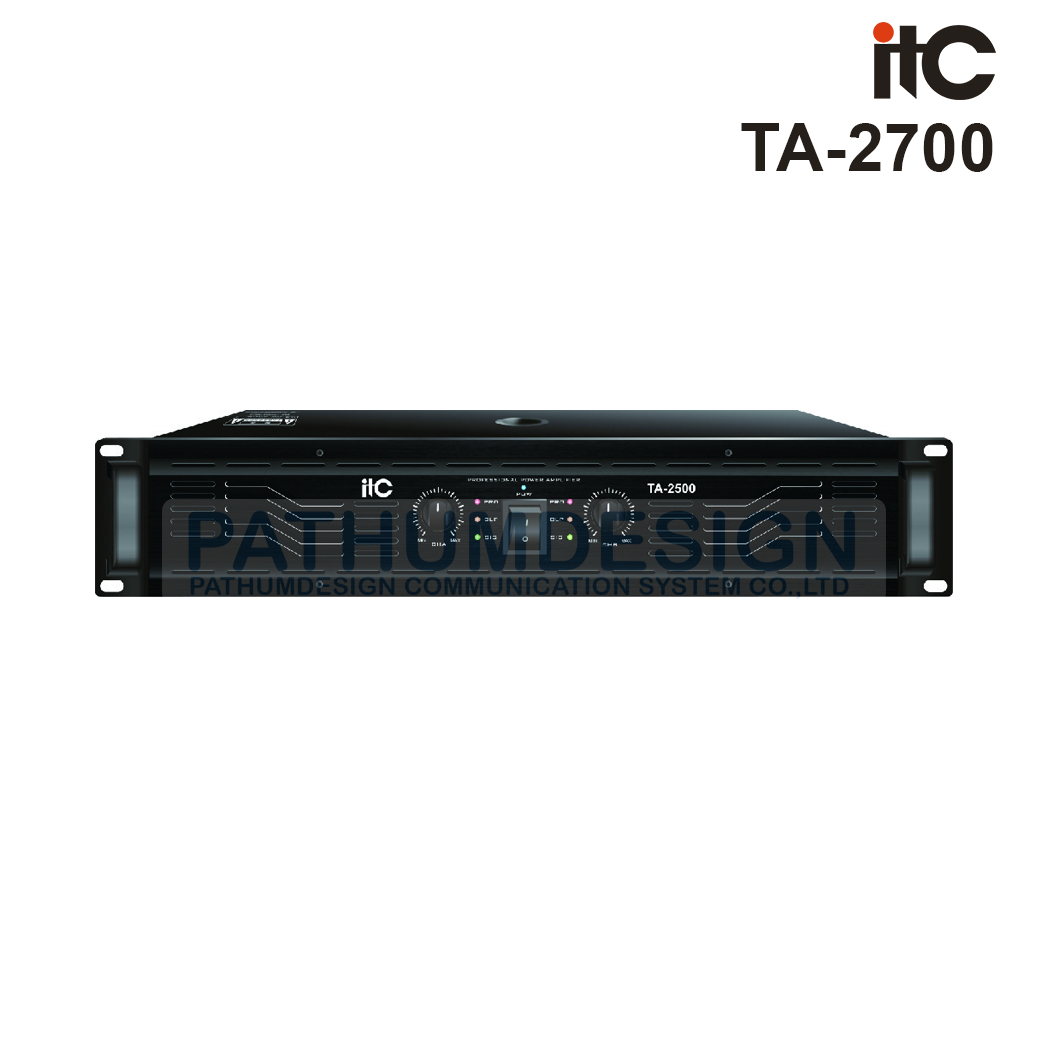

ITC TA-2700 2x700W, Stereo Power Amplifier, Class H
Feature:
* Industrial modeling aluminum panel, durable design, removable and washable dust-proof mesh and cooling vents.
* Soft starter can prevent absorbing large currents into the power grid when starting up and interfering with other electrical devices.
* Intelligent forced heat dissipation design, low fan noise, high dissipation efficiency, etc.
* Built-in intelligent limiter controls the power module and the speaker system to work in a safe range.
* Built-in 30Hz/50Hz high-pass filter.
* Multiple modes: stereo, bridge, parallel.
* Abundant reserve power, with 2R low-impedance output, high-fidelity and perfect sound quality.
* High quality transformer, low resistance and large capacity electrolytic filter, make large dynamic work smooth.
* Class-H efficient amplified circuit, comprehensive and reliable security protection measures and working status indicator (short circuit, overload, DC and overheat protection, transformer overheat protection).
Specification：
|
Model |
TA-2500 |
TA-2700 |
TA-21200 |
|
Output power (20-20KHz/THD≤1%) stereo/parallel 8Ω × 2 |
500W×2 |
700W × 2 |
1200W ×2 |
|
Output power (20-20KHz/THD≤1%) stereo/parallel 4Ω × 2 |
750W × 2 |
1050W × 2 |
1800W ×2 |
|
Output power (20-20KHz/THD≤1%) stereo/parallel 2Ω ×2 |
1125W ×2 |
1500W × 2 |
2700W ×2 |
|
Bridge 8Ω |
1500W |
2100W |
3600W |
|
Bridge 4Ω |
2200W |
3000W |
5400W |
|
Connection |
XLR, TRS interface |
||
|
Voltage gain (@1KHz) |
36dB |
37.7dB |
40dB |
|
Input sensitivity |
0dBu(1V) |
||
|
Input impedance |
10KΩ unbalanced, 20KΩ balanced |
||
|
Frequency response(@1W Power) |
20-20KHz/±1dB |
||
|
THD+N(@1/8 power) |
≤0.05％ |
||
|
SNR (A-weighted) |
≥100dB |
||
|
Damping coefficient(@ 1KHz) |
≥300@ 8ohms |
||
|
Resolution (@1KHz) |
≥80dB |
||
|
Protection method |
Over-current protection, DC protection, short circuit protection |
||
|
Indicator |
Power, protection, distortion |
||
|
Cooling method |
Fan cooling |
||
|
Power supply |
~ 220V 50Hz |
||
|
Maximum power consumption |
3300W |
4500W |
8000W |
|
Size |
483× 494× 88mm |
483× 494× 88mm |
483 ×524× 132mm |
|
Weight |
17.4Kg |
19.6Kg |
32Kg |
